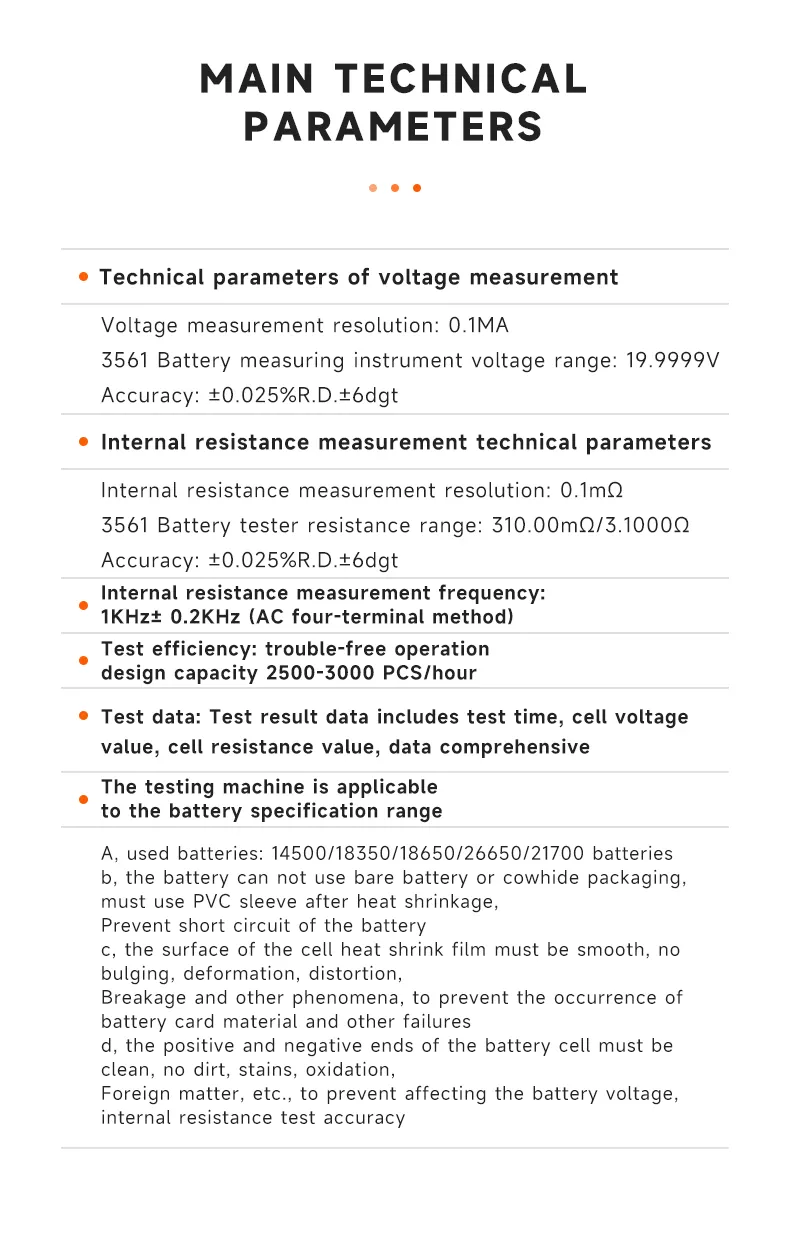

Technical parameters of voltage measurementVoltage measurement resolution:0.1MA
3561 Battery measuring instrument voltage range:19.9999v
Accuracy:±0.025%R.D.±6dgt
Internal resistance measurement technical parameters
Internal resistance measurement resolution:0.1m
3561 Battery tester resistance range:310.00mQ/3.1000n
Accuracy:±0.025%R.D.±6dgt
Internal resistance measurement frequency:
1KHz± 0.2KHz(AC four-terminal method)
Test efficiency: trouble-free operation
design capacity 2500-3000 Pcs/hour
